Ball offers you the broadest range of beverage cans in the market. Choose the best product for you brand and download the design guide.
| Range |
| Slim |
| Size |
| 200 ml |
| Neck type |
| 200 |
| Metal |
| Aluminium |
| Design length (circumference) |
| 167 mm |
| Design height |
| 108 mm |
| Maximum text area (length) |
| 160 mm |
| Maximum text area (height) |
| 103.5 mm |
| Under / Overlap area |
| 2 mm |
| Maximum no. of colours |
| 8 |
| Range |
| Slim |
| Size |
| 250 ml |
| Neck type |
| 200 |
| Metal |
| Aluminium |
| Design length (circumference) |
| 167 mm |
| Design height |
| 130.5 mm |
| Maximum text area (length) |
| 160 mm |
| Maximum text area (height) |
| 125.5 mm |
| Under / Overlap area |
| 2 mm |
| Maximum no. of colours |
| 6 - 8 |
| Range |
| Sleek |
| Size |
| 250 ml |
| Neck type |
| 202 |
| Metal |
| Aluminium |
| Design length (circumference) |
| 182 mm |
| Design height |
| 107.5 mm |
| Maximum text area (length) |
| 172 mm |
| Maximum text area (height) |
| 102 mm |
| Under / Overlap area |
| 2 mm |
| Maximum no. of colours |
| 6 -8 |
| Range |
| Sleek |
| Size |
| 330 ml |
| Neck type |
| 202 |
| Metal |
| Aluminium |
| Design length (circumference) |
| 182 mm |
| Design height |
| 139 mm |
| Maximum text area (length) |
| 173 mm |
| Maximum text area (height) |
| 133.5 mm |
| Under / Overlap area |
| 2 mm |
| Maximum no. of colours |
| 6 - 8 |
| Range |
| Sleek |
| Size |
| 355 ml |
| Neck type |
| 202 |
| Metal |
| Aluminium |
| Design length (circumference) |
| 182 mm |
| Design height |
| 150 mm |
| Maximum text area (length) |
| 173 mm |
| Maximum text area (height) |
| 144.5 mm |
| Under / Overlap area |
| 2 mm |
| Maximum no. of colours |
| 6 - 8 |

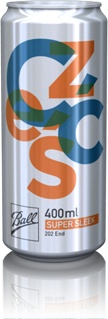

| Range |
| Sleek |
| Size |
| 400 ml |
| Neck type |
| 202 |
| Metal |
| Aluminium |
| Design length (circumference) |
| 198 mm |
| Design height |
| 145.6 mm |
| Maximum text area (length) |
| 190 mm |
| Maximum text area (height) |
| 159.5 mm |
| Under / Overlap area |
| 2 mm |
| Maximum no. of colours |
| 8 |

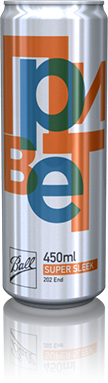

| Range |
| Sleek |
| Size |
| 450 ml |
| Neck type |
| 202 |
| Metal |
| Aluminium |
| Design length (circumference) |
| 198 mm |
| Design height |
| 160.5 mm |
| Maximum text area (length) |
| 190 mm |
| Maximum text area (height) |
| 155 mm |
| Under / Overlap area |
| 2 mm |
| Maximum no. of colours |
| 6 - 8 |
| Range |
| Sleek |
| Size |
| 473 ml |
| Neck type |
| 202 |
| Metal |
| Aluminium |
| Design length (circumference) |
| 198 mm |
| Design height |
| 167 mm |
| Maximum text area (length) |
| 190 mm |
| Maximum text area (height) |
| 159.5 mm |
| Under / Overlap area |
| 2 mm |
| Maximum no. of colours |
| 6 - 8 |

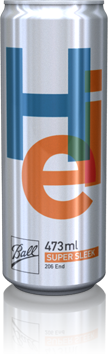

| Range |
| Sleek |
| Size |
| 473 ml |
| Neck type |
| 206 |
| Metal |
| Aluminium |
| Design length (circumference) |
| 198 mm |
| Design height |
| 167 mm |
| Maximum text area (length) |
| 190 mm |
| Maximum text area (height) |
| 159.5 mm |
| Under / Overlap area |
| 2 mm |
| Maximum no. of colours |
| 6 - 8 |

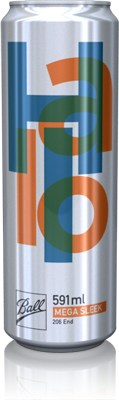

| Range |
| Sleek |
| Size |
| 591 ml |
| Neck type |
| 206 |
| Metal |
| Aluminium |
| Design length (circumference) |
| 208 mm |
| Design height |
| 185.5 mm |
| Maximum text area (length) |
| 198 mm |
| Maximum text area (height) |
| 180 mm |
| Under / Overlap area |
| 2 mm |
| Maximum no. of colours |
| 6 |
| Range |
| Standard |
| Size |
| 250 ml |
| Neck type |
| 202 |
| Metal |
| Aluminium |
| Design length (circumference) |
| 206 mm |
| Design height |
| 83.5 mm |
| Maximum text area (length) |
| 198 mm |
| Maximum text area (height) |
| 134 mm |
| Under / Overlap area |
| 2 mm |
| Maximum no. of colours |
| 8 |
| Range |
| Standard |
| Size |
| 330 ml |
| Neck type |
| 202 |
| Metal |
| Aluminium / Steel |
| Design length (circumference) |
| 208 mm |
| Design height |
| 107.5 mm |
| Maximum text area (length) |
| 198 mm |
| Maximum text area (height) |
| 102 mm |
| Under / Overlap area |
| 2 mm |
| Maximum no. of colours |
| 6 - 8 |

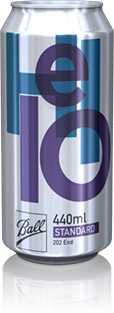

| Range |
| Standard |
| Size |
| 440 ml |
| Neck type |
| 202 |
| Metal |
| Aluminium |
| Design length (circumference) |
| 206 mm |
| Design height |
| 142.5 mm |
| Maximum text area (length) |
| 198 mm |
| Maximum text area (height) |
| 137 mm |
| Under / Overlap area |
| 2 mm |
| Maximum no. of colours |
| 6 |
| Range |
| Standard |
| Size |
| 500 ml |
| Neck type |
| 202 |
| Metal |
| Aluminium |
| Design length (circumference) |
| 208 mm |
| Design height |
| 160.5 mm |
| Maximum text area (length) |
| 198 mm |
| Maximum text area (height) |
| 155 mm |
| Under / Overlap area |
| 2 mm |
| Maximum no. of colours |
| 6 - 8 |

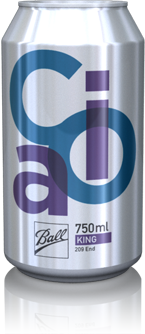

| Range |
| King |
| Size |
| 750 ml |
| Neck type |
| 209 |
| Metal |
| Aluminium |
| Design length (circumference) |
| 263 mm |
| Design height |
| 153 mm |
| Maximum text area (length) |
| 255 mm |
| Maximum text area (height) |
| 144.5 mm |
| Under / Overlap area |
| 2 mm |
| Maximum no. of colours |
| 6 |

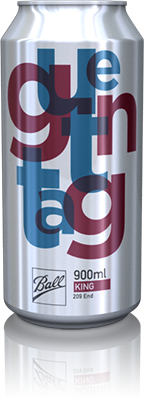

| Range |
| King |
| Size |
| 900 ml |
| Neck type |
| 209 |
| Metal |
| Aluminium |
| Design length (circumference) |
| 263 mm |
| Design height |
| 178 mm |
| Maximum text area (length) |
| 255 mm |
| Maximum text area (height) |
| 169.5 mm |
| Under / Overlap area |
| 2 mm |
| Maximum no. of colours |
| 6 - 8 |

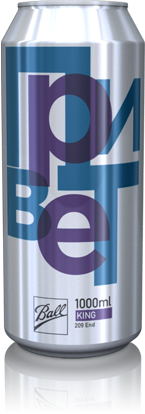

| Range |
| King |
| Size |
| 1000 ml |
| Neck type |
| 209 |
| Metal |
| Aluminium |
| Design length (circumference) |
| 263 mm |
| Design height |
| 196 mm |
| Maximum text area (length) |
| 255 mm |
| Maximum text area (height) |
| 187.5 mm |
| Under / Overlap area |
| 2 mm |
| Maximum no. of colours |
| 6 |
Use the arrows to find your product type & size then click it to download the Ball design guide. Creating your design in our guide ensures that it fits our products.
